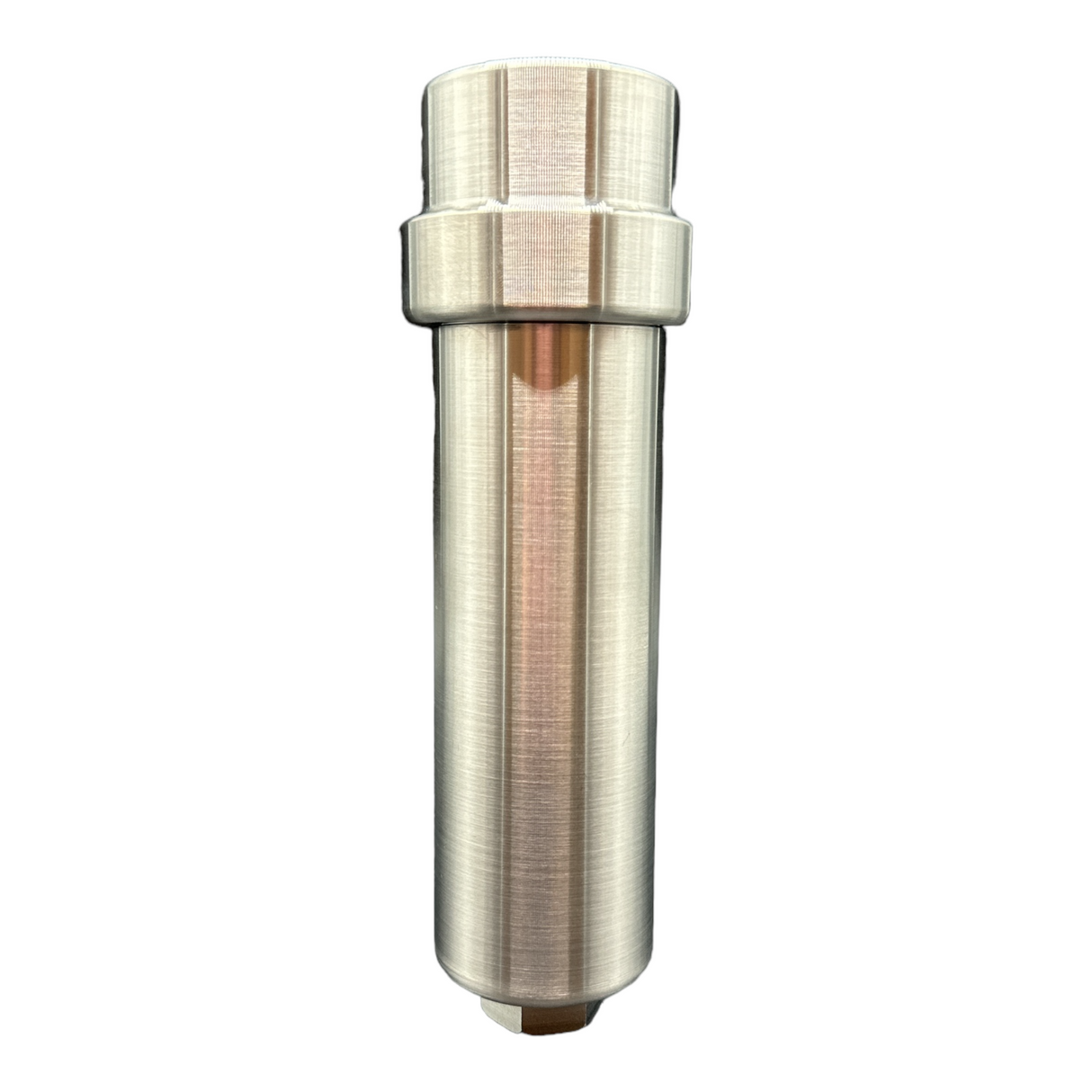

Stainless Steel Filter Housing - Model 143HP
£943.92 (Inc. VAT at 20%)
Stainless Steel Filter Housing - Model 143HP - 1/2" NPT / 1/2" NPT / 200°C - 200 bar Assembled to order – Usually ships within 3 days.
Couldn't load pickup availability
Stainless Steel Filter Housing - Model 143HP
Filtration applications
If you can’t find what you need, please ask, we can produce filters to customers’ specifications.
Description
Description
Filter Housing Models 140HP-146HP
Filter Housing Model range 130HP – 146HP have a rugged, yet simple design that makes them a faultless solution for CNG applications as well as other high-pressure requirements. The small internal volume and compact design help eliminate carry-over during system start- up. .
The compact design with small internal volume and positive O-ring sealing makes it perfect for demanding analyser applications.
They are constructed entirely of 316L stainless steel and are free of welds to comply with NACE MR0175 and MR0103.
These items are CE/UKCA marked under the PED (2014/68/EU) and PE(S)R (SI-2016/1105).
Features:
- Pressure rated to 200 bar (1)
- Temperature rated to 200 degrees Celsius (2)
- A choice of 1/4” or 1/2” NPT Inlet/Outlet ports
- Drain options - 1/4” NPT, 1/2” NPT or No Drain
- Weld free 316L stainless steel construction.
- Particulate Filtration = 2-port designs
- Coalescing Filtration & Bypass = 3-port designs
- Internal Volume = 300cc (without filter element installed)
- Weight = 3.4kg
Notes:
(1) Above 200ºC the pressure rating is reduced, consult Headline Filters for the exact rating at any specific temperature.
(2) Maximum temperature 200ºC using standard seals.
