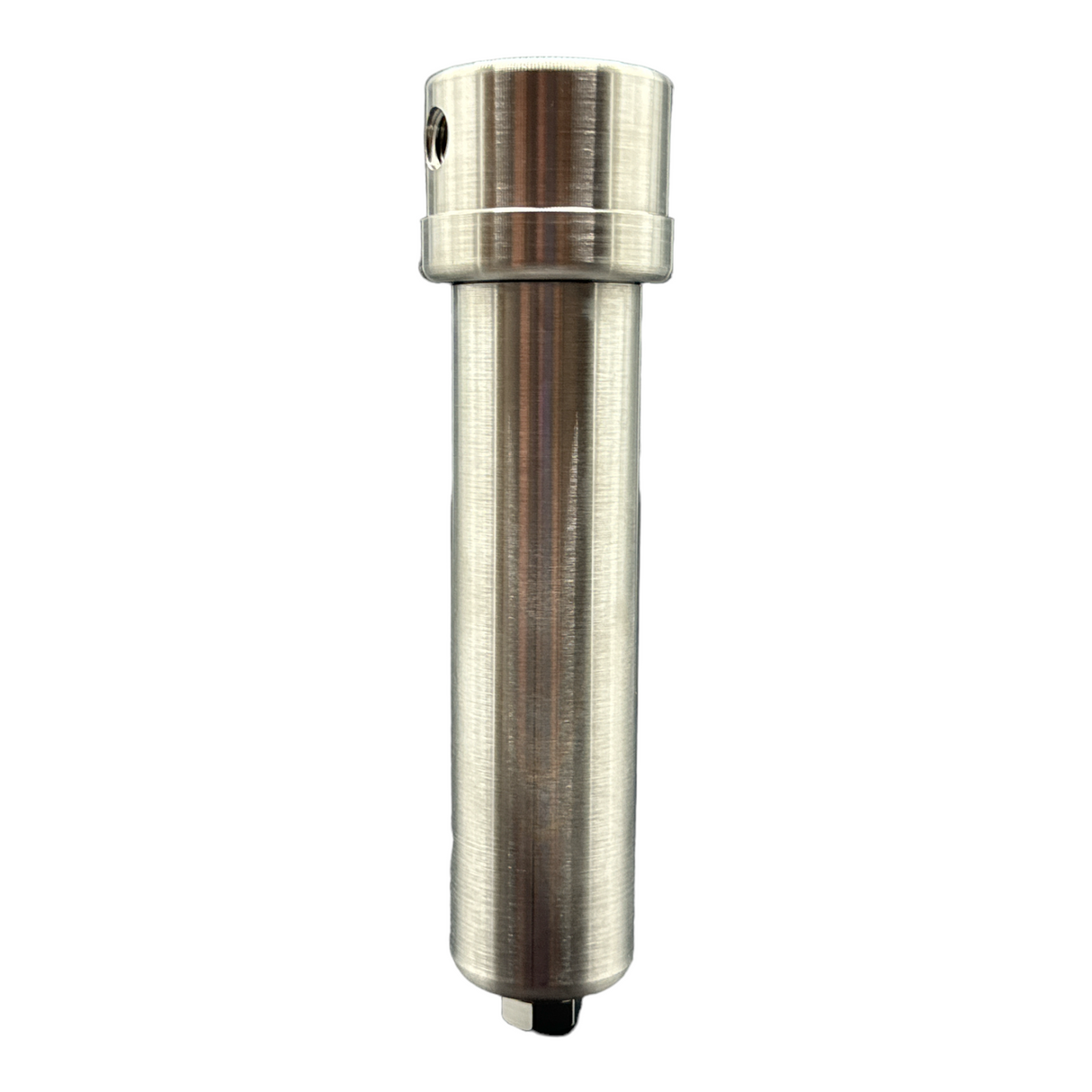

Stainless Steel Filter Housing - Model 144
£658.32 (Inc. VAT at 20%)
Stainless Steel Filter Housing - Model 144 - 1/4" NPT / NONE / 200°C - 100 bar Assembled to order – Usually ships within 3 days.
Couldn't load pickup availability
Stainless Steel Filter Housing - Model 144
Filtration applications
If you can’t find what you need, please ask, we can produce filters to customers’ specifications.
Description
Description
Filter Housing Models 140-146
Filter Housing Model range 130-146 is an extremely versatile filter housing, ideal for use in many applications as well as gaseous and liquid sample process analysers. The compact design with small internal volume makes it perfect for many demanding applications. They are constructed entirely of 316L stainless steel and are free of welds to comply with NACE MR0175 and MR0103.
Applications:
- CNG Filtration
- High Pressure Gas Production
- Sample Process Analysers
- Supercritical CO2
- Food and Dairy Process
Features:
- Pressure rated to 100 bar (1)
- Temperature rated to 200 degrees Celsius (2)
- 1/4” NPT Inlet/Outlet ports with 1/4” NPT drain
- Weld free 316L stainless steel construction
- Particulate Filtration = 2-port designs
- Coalescing Filtration & Bypass = 3-port designs
- Internal Volume = 265cc (without filter element installed)
- Weight = 1.56kg
Notes:
(1) Above 200ºC the pressure rating is reduced, consult Headline Filters for the exact rating at any specific temperature.
(2) Maximum temperature 200ºC using standard seals.
