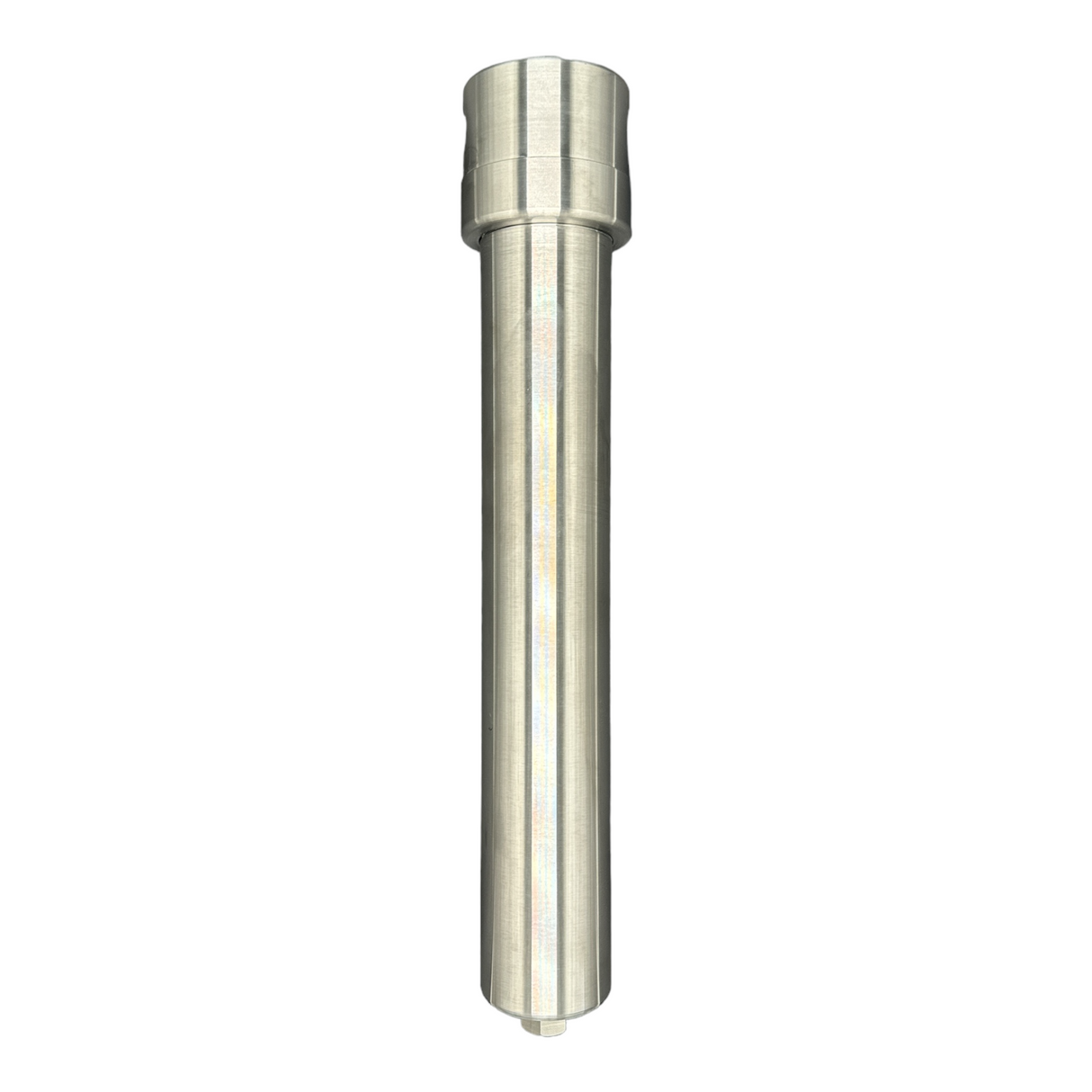

Stainless Steel Filter Housing - Model 162
£1,509.36 (Inc. VAT at 20%)
Stainless Steel Filter Housing - Model 162 - 2" NPT / 1/4" NPT / 200°C - 100 bar Assembled to order – Usually ships within 3 days.
Couldn't load pickup availability
Stainless Steel Filter Housing - Model 162
Filtration applications
If you can’t find what you need, please ask, we can produce filters to customers’ specifications.
Description
Description
Filter Housing Models 160-162
Filter Housing Model range 150 – 162 are used for gas & liquid processes to protect equipment from sample impurities by removing solids and liquids from gases.
With up to 99.999% efficiency at 0.01 micron using our comprehensive range of borosilicate glass microfibre filter elements.
These filter housings are also ideal to use in liquid sample process applications by simply installing one of our stainless steel elements which are available in a range of micron sizes. 1 micron up to 200 micron.
They are constructed entirely of 316L stainless steel and are free of welds to comply with NACE MR0175 and MR0103.
These items are CE/UKCA marked under the PED (2014/68/EU) and PE(S)R (SI-2016/1105).
Features:
- Pressure rated to 100 bar (1)
- Temperature rated to 200 degrees Celsius (2)
- A choice of 1”, 1.1/2" or 2” NPT Inlet/Outlet ports
- Drain - 1/4” NPT
- Weld free 316L stainless steel construction.
- Internal Volume = 2700cc (without filter element installed)
- Weight = 13.5kg
Notes:
(1) Above 200ºC the pressure rating is reduced, consult Headline Filters for the exact rating at any specific temperature.
(2) Maximum temperature 200ºC using standard seals.
