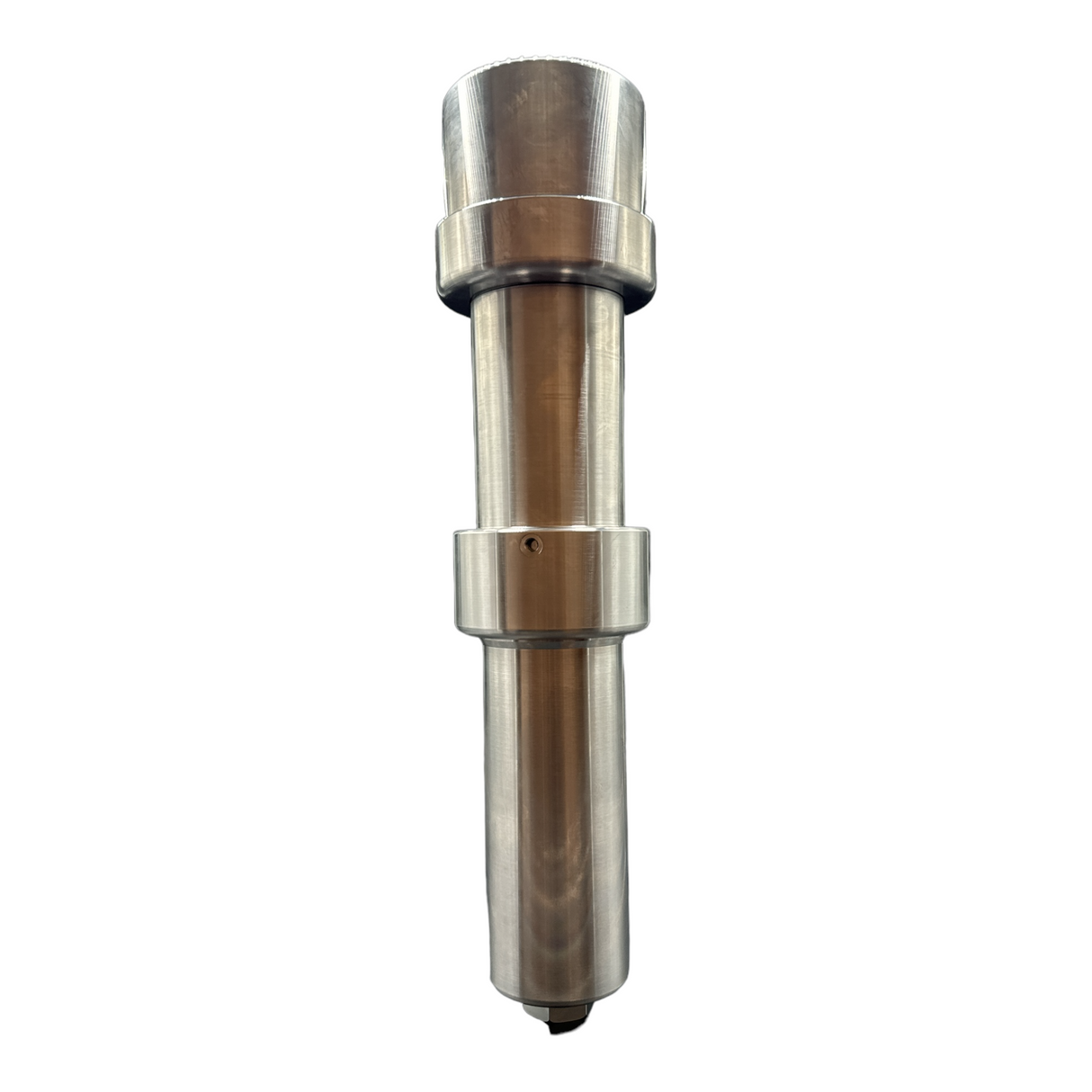

Stainless Steel Filter Housing - Model 162VP

Filter Housing Models 160VP-162VP

Filter Housing Model range 150VP – 162VP are high-pressure 316L stainless steel filter housings which offer exceptional value and performance.

The threaded head to bowl connection with captured o-ring provides positive sealing even in very corrosive and demanding applications.

The 2-piece bowl connection has an additional O-ring seal, and aids the change/maintenance of the filter element by not requiring a large space under the unit when unscrewing and removing the bowl.

Rated to 400 bar, it covers the majority of gas and liquid applications.

With up to 99.999% efficiency at 0.01 micron using our comprehensive range of borosilicate glass microfibre filter elements.

These filter housings are also ideal to use in liquid sample process applications by simply installing one of our stainless steel elements which are available in a range of micron sizes. 1 micron up to 200 micron.

They are constructed entirely of 316L stainless steel and are free of welds to comply with NACE MR0175 and MR0103.

These items are CE/UKCA marked under the PED (2014/68/EU) and PE(S)R (SI-2016/1105).

 Features:

• Pressure rated to 400 bar (1)
• Temperature rated to 200 degrees Celsius (2)
• A choice of 1”, 1.1/2" or 2” NPT Inlet/Outlet ports
• Drain - 1/4” NPT
• Weld free 316L stainless steel construction.
• Internal Volume = 2700cc (without filter element installed)
• Weight = 28kg

 Notes:

 (1) Above 200ºC the pressure rating is reduced, consult Headline Filters for the exact rating at any specific temperature.

 (2) Maximum temperature 200ºC using standard seals.
