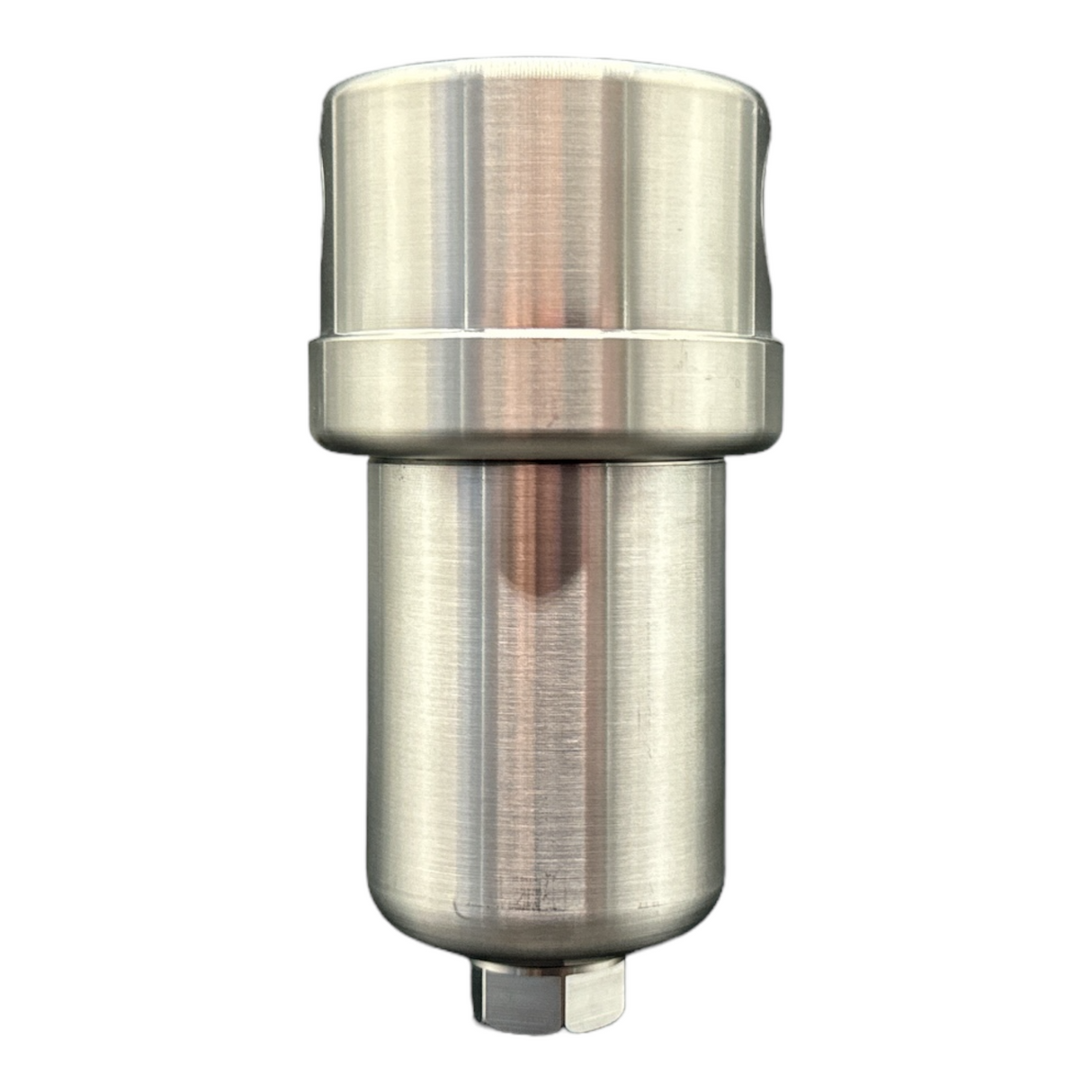

Stainless Steel Filter Housing - Model 134S

Filter Housing Models 130S-136S

Filter Housing Model range 130-146 is an extremely versatile filter housing, ideal for use in many applications as well as gaseous and liquid sample process analysers. The compact design with small internal volume makes it perfect for many demanding applications. They are constructed entirely of 316L stainless steel and are free of welds to comply with NACE MR0175 and MR0103.

These housings are fitted with a PTFE seal, which requires a modified sealing design: simply add an S to the housing code, e.g.134S. PTFE seals cannot be retrofitted into standard housings originally having Viton seals. High temperature gaskets can only be fitted into S version housings.

Applications:

• CNG Filtration
• High Pressure Gas Production
• Sample Process Analysers
• Supercritical CO₂
• Food and Dairy Process

Features:

• Pressure rated to 100 bar (1)
• Temperature rated to 200 degrees Celsius (2)
• 1/4” NPT Inlet/Outlet ports with 1/4” NPT drain
• Weld free 316L stainless steel construction
• Particulate Filtration = 2-port designs
• Coalescing Filtration & Bypass = 3-port designs
• Internal Volume = 110cc (without filter element installed)
• Weight = 1.08kg

 Notes:

(1) Above 200ºC the pressure rating is reduced, consult Headline Filters for the exact rating at any specific temperature.
