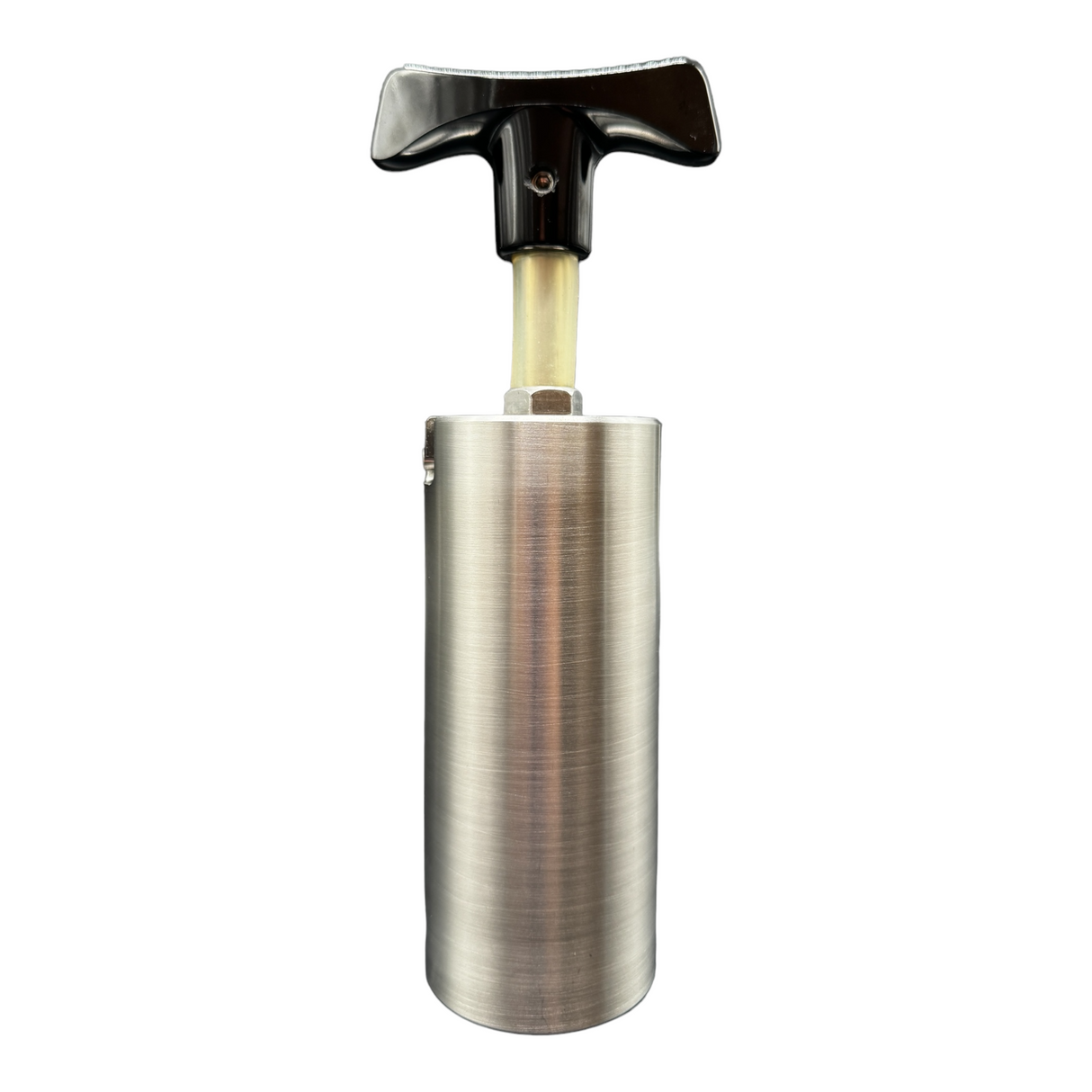

Stainless Steel Filter Housing - Model H130T
£730.44 (Inc. VAT at 20%)
Stainless Steel Filter Housing - Model H130T - 1/4" NPT / 200°C - 2 bar / Silicone Assembled to order – Usually ships within 3 days.
Couldn't load pickup availability
Stainless Steel Filter Housing - Model H130T
Filtration applications
If you can’t find what you need, please ask, we can produce filters to customers’ specifications.
Description
Description
Headline heatable housings are purpose designed for hot gas analysis, such as diesel exhaust at 200°C. The housings can be heated by any external heater, and the bayonet type head to bowl connection allows the filter element to be changed in seconds, even at operating temperature.
All housings have integral support cores for positive element location and spring loaded element retainers for reliable sealing over the full temperature range.
Models H130 & H140 have inlet and outlet ports in the base allowing the entire OD of the housing to be heated. Housings with S or ST suffix have both ports in the side of the housing. Housings with T in the suffix have the element sealed by conventional tie-rod and element retainer.
