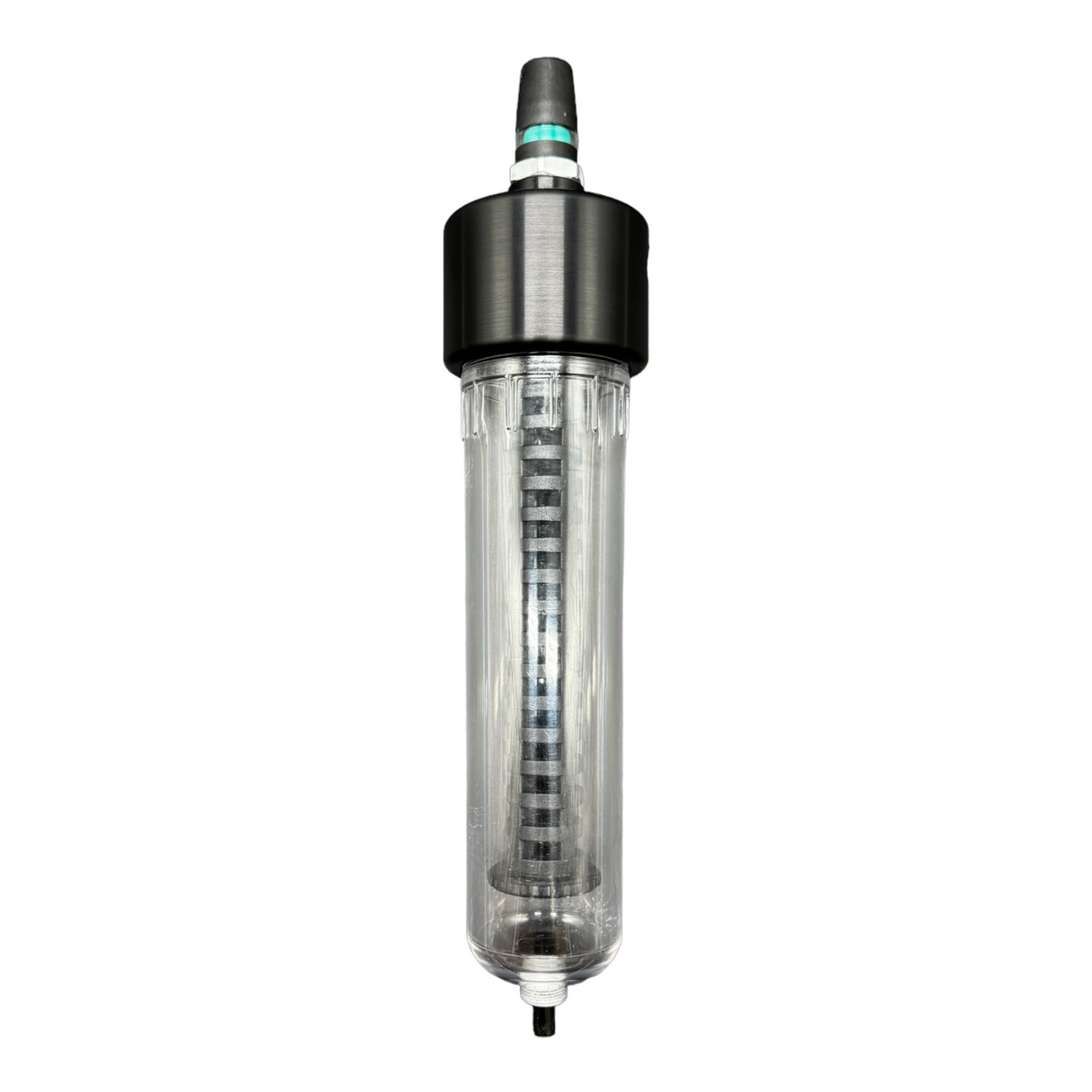

Aluminium Filter Housing - Model 370I
£155.28 (inkl. 20 % MwSt.)
Aluminium Filter Housing - Model 370I - 1/4"NPT / MANUAL / 50°C - 10 bar ist auf Lager und wird versandt, sobald es wieder verfügbar ist
Verfügbarkeit für Abholungen konnte nicht geladen werden
Filtrationsanwendungen
Wenn Sie nicht finden, was Sie brauchen, fragen Sie bitte nach. Wir können Filter nach Kundenspezifikationen herstellen.
Beschreibung
Beschreibung
High Efficiency Coalescing Filters
This filter housing range is constructed of an anodised aluminium head and with a choice of either an anodised aluminium bowl or, for lower costs, a Polycarbonate bowl. Protect your equipment and sensitive instruments from water, oil, & dirt with our high efficiency instrument filters that remove these contaminates up to 99.99% efficiency at 0.01 micron.
The 360 & 370 series of coalescing filters have increased liquid holding capacity and are available with optional high volume automatic float drains (with function above 12 psi), and differential pressure indicators which are sensitive in the 2 to 16 psi differential.
Applications:
· Natural Gas Filtration
· Protect Air Actuated Valves
· Paint Spray Booths
· Fuel Gas Filter Metering
· Instrument Air Filter
The part number structure for the variants are as follows:
If the number does not contain an "A" after it, then it will be an aluminium head with Polycarbonate bowl. (e.g. Model 360 or 370)
Any product that contains an “A” indicates it has an aluminium head & bowl. (e.g. 360A or 375A)
Any product that contains an “I” indicates that the product has a built-in differential pressure indicator.
Any product that contains a “F” indicates that the product has an auto float drain installed. Please note that the float will function above 12 psi (1 bar).
If you need help choosing the correct variant, then please contact us and we will be happy to help
