380AHP VDI Unit
£110.40 (Inc. VAT at 20%)
380AHP VDI Unit Assembled to order – Usually ships within 3 days.
Couldn't load pickup availability
380AHP VDI Unit
Filtration applications
If you can’t find what you need, please ask, we can produce filters to customers’ specifications.
Description
Description

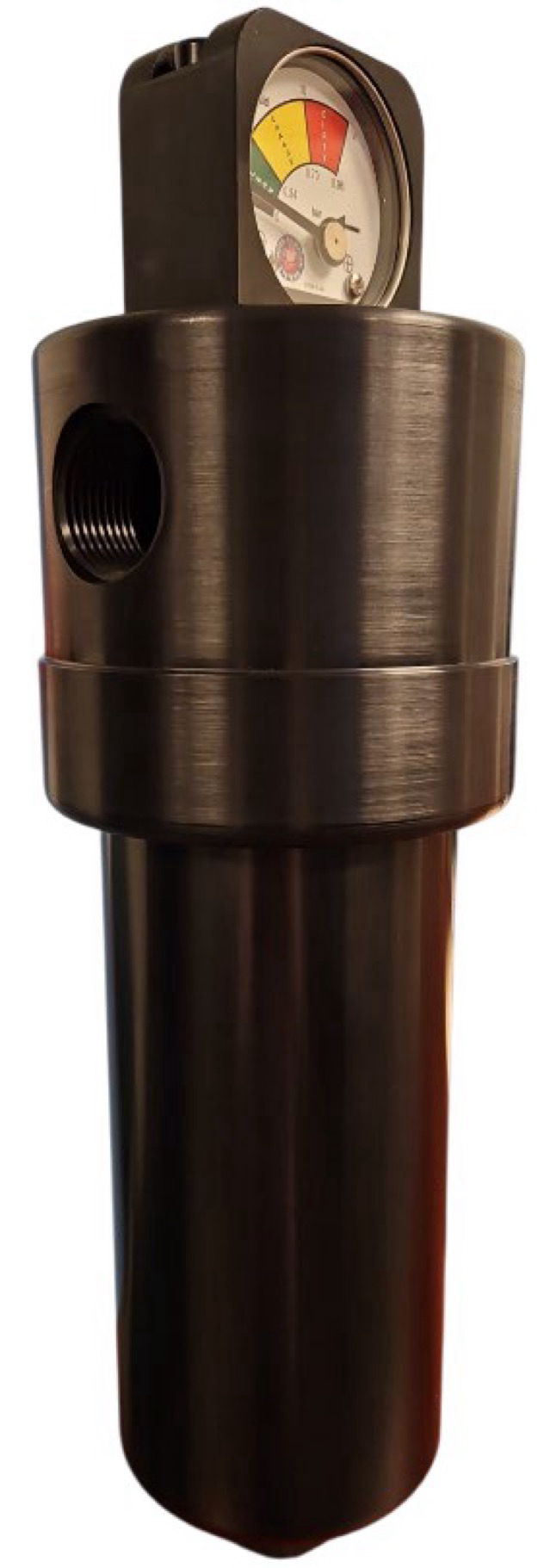

The 380AHP VDI Unit can be factory installed or mounted in the field. It is designed to fit our 380 series of
housings and may be attached to other proprietary brands.

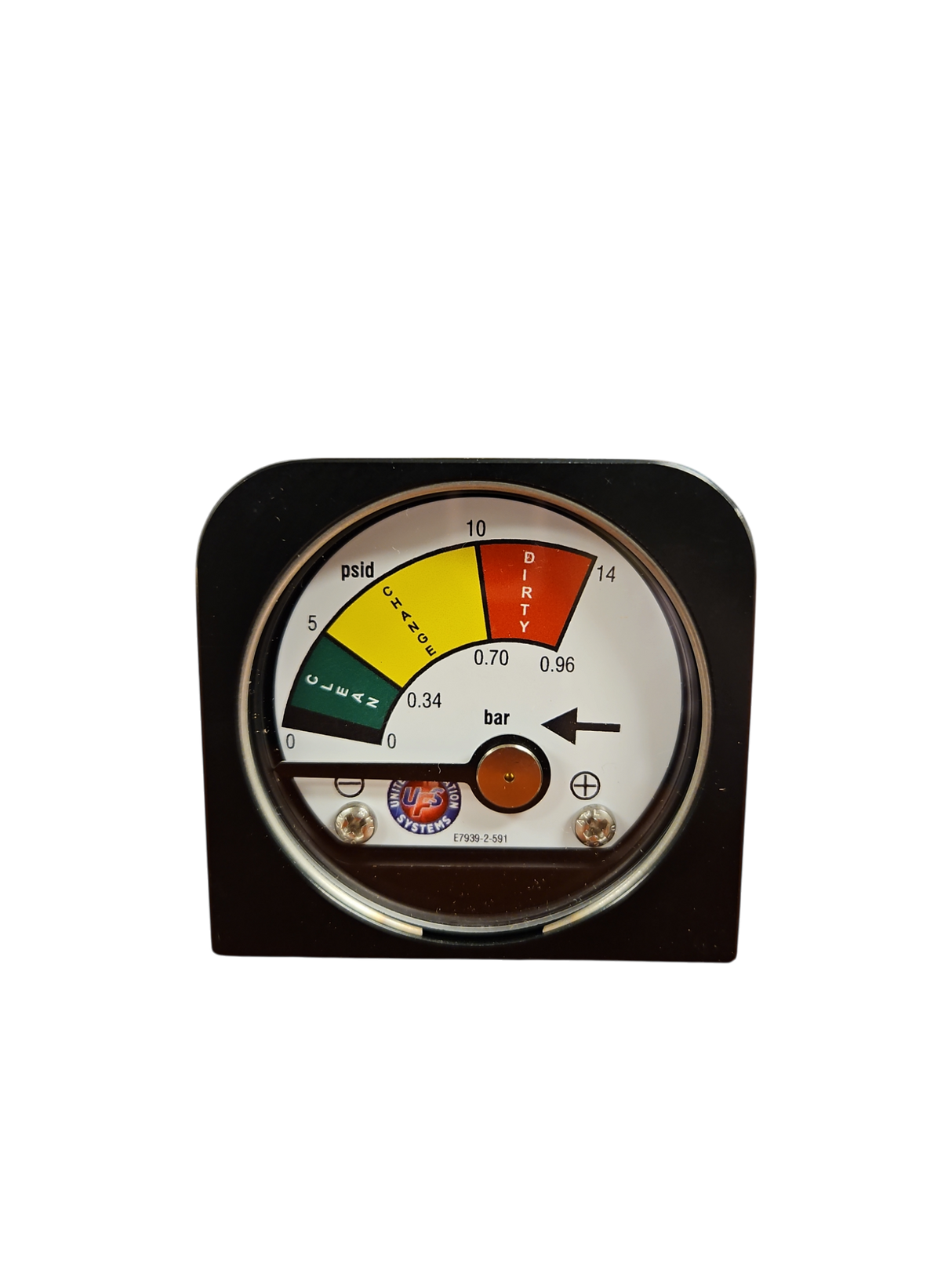

The Visual Differential Indicator (VDI) is a colored gauge with set points:
- Green: 0–5 PSIG
- Yellow: 6–9 PSIG
- Red: 10–14 PSIG
Installation is simple: turn off line pressure, vent the filter, remove the two 1/8” (3.18 mm) plugs, and install
the 380VDI-750 into the 1/8” tapped ports.
500 PSIG Maximum Working Pressure
For Use with Compressed Air Only
Dimensional Details (All in mm):
Compatibility Information
Compatibility Information
