Headline Filters  |  SKU: 61255170

Glass Fibre Filter Element 25-51-70K

£90.00 GBP

£108.00 (Inc. VAT at 20%)

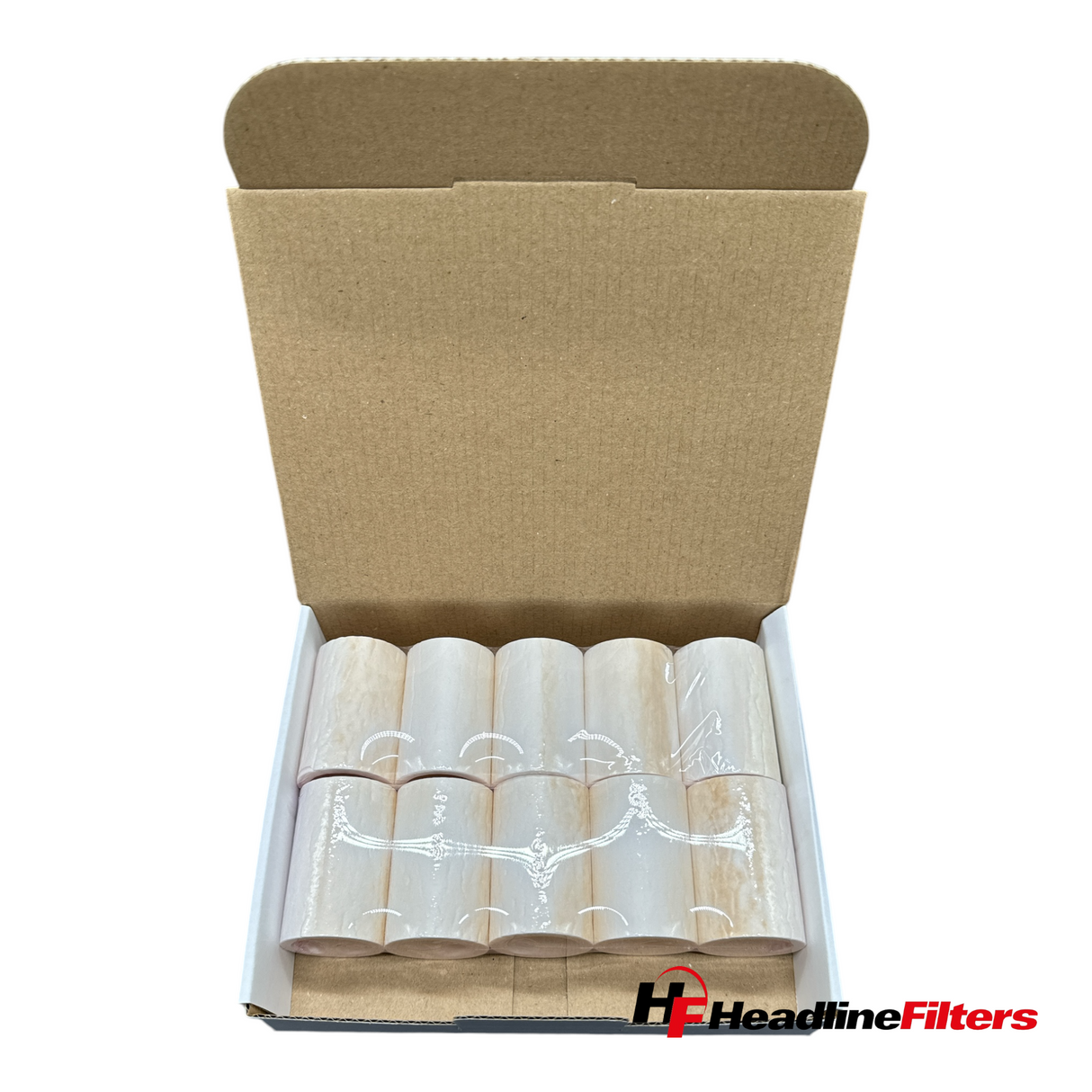

Unit of Measure : Box of 10


Size (ID - Length) - See description below for more details
Binder/Application - See description below for more details
Filtration Grade:

Glass Fibre Filter Element 25-51-70K - 25-51-xx / PVDF (Corrosive Applications) / Grade 70K Assembled to order – Usually ships within 3 days.

This is a Sample Product Title
Was $200.00 Now $100.00

Please contact us with any questions, we're here to help.

Filtration applications

If you can’t find what you need, please ask, we can produce filters to customers’ specifications.

Description

Disposable Bonded Microfibre Filters

Headline disposable filter elements are manufactured from precise mixtures of borosilicate glass microfibres, to the very highest standards of quality control. These elements offer exceptional filtration efficiency at very low pressure drops and, being 90+% void volume, give very long service life.

The elements are self-gasketing and easily sealed into the housing by axial compression. The elements are bonded to impart high strength and eliminate fibre shedding. The choice between the different binders available will depend upon the application conditions.

Particulate Removal Applications

K-Type (PVDF) are specified where corrosive gases and liquids are to be filtered, as they have excellent chemical resistance. They are also used where highly reactive gases are being analysed, since they exhibit very low levels of adsorption. Max Temp: 150ºC

Filter Element Efficiency

Each element type is available in a wide range of grades of efficiency, covering the complete range from coarse bulk contamination removal (grade 80) and the essentially complete removal of submicron particles (grade 40).

Grade designations, removal of 0.1 micron particles

99.9999+% = Grade 40

99.99+% = Grade 50

99.5%+ = Grade 60

95+% = Grade 70

75+% = Grade 80

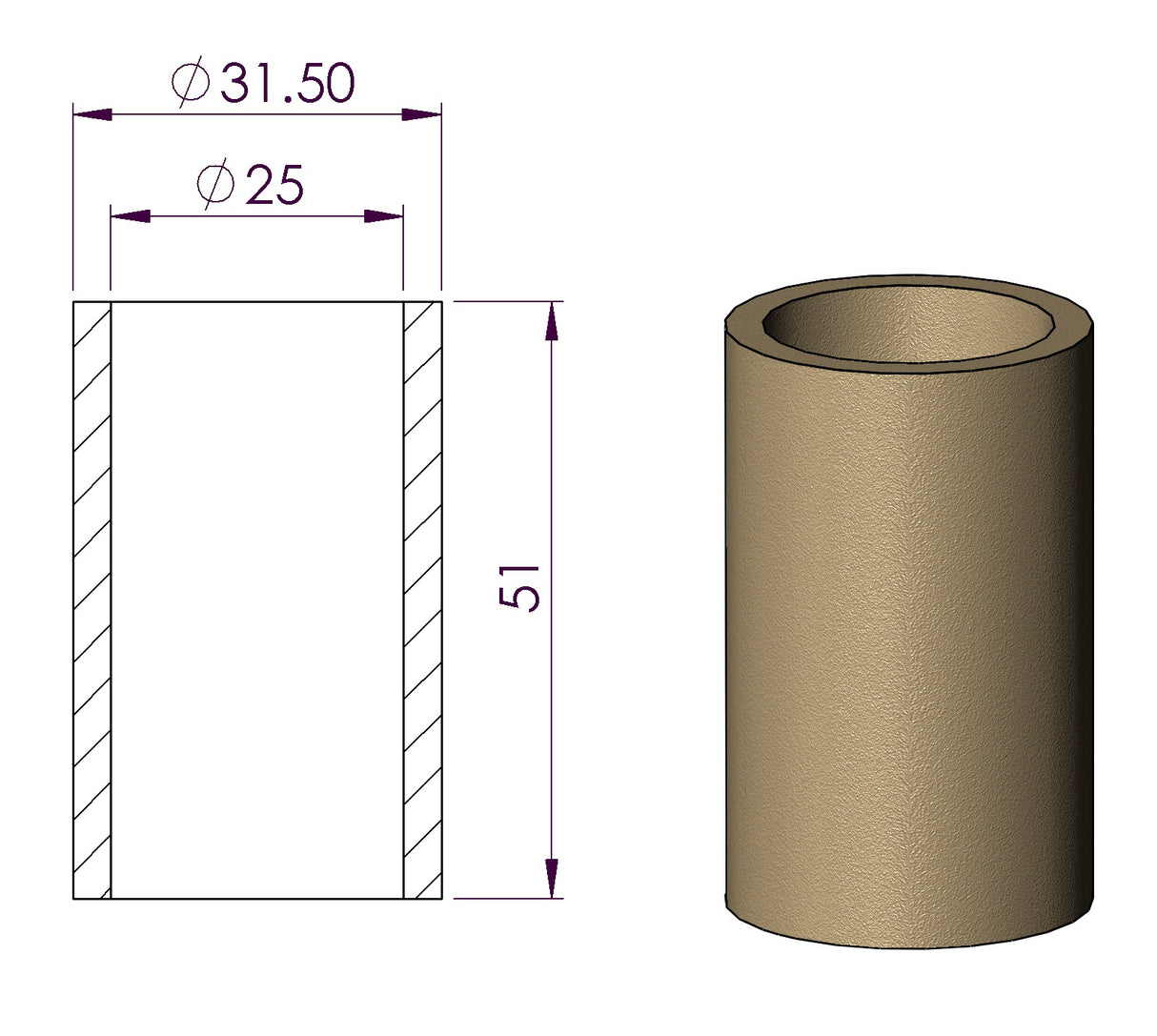

Filter Element Dimensions

All disposable filter elements have a part number arranged with three figures, e.g. 25-64-70. The first part refers to the inside diameter of the element in millimetres, the second figure refers to the overall length of the element in millimetres and the third part refers to the grade designation. Replace the ‘xx’ in the part numbers with the grade designation.
