Headline Filters  |  SKU: 23600032

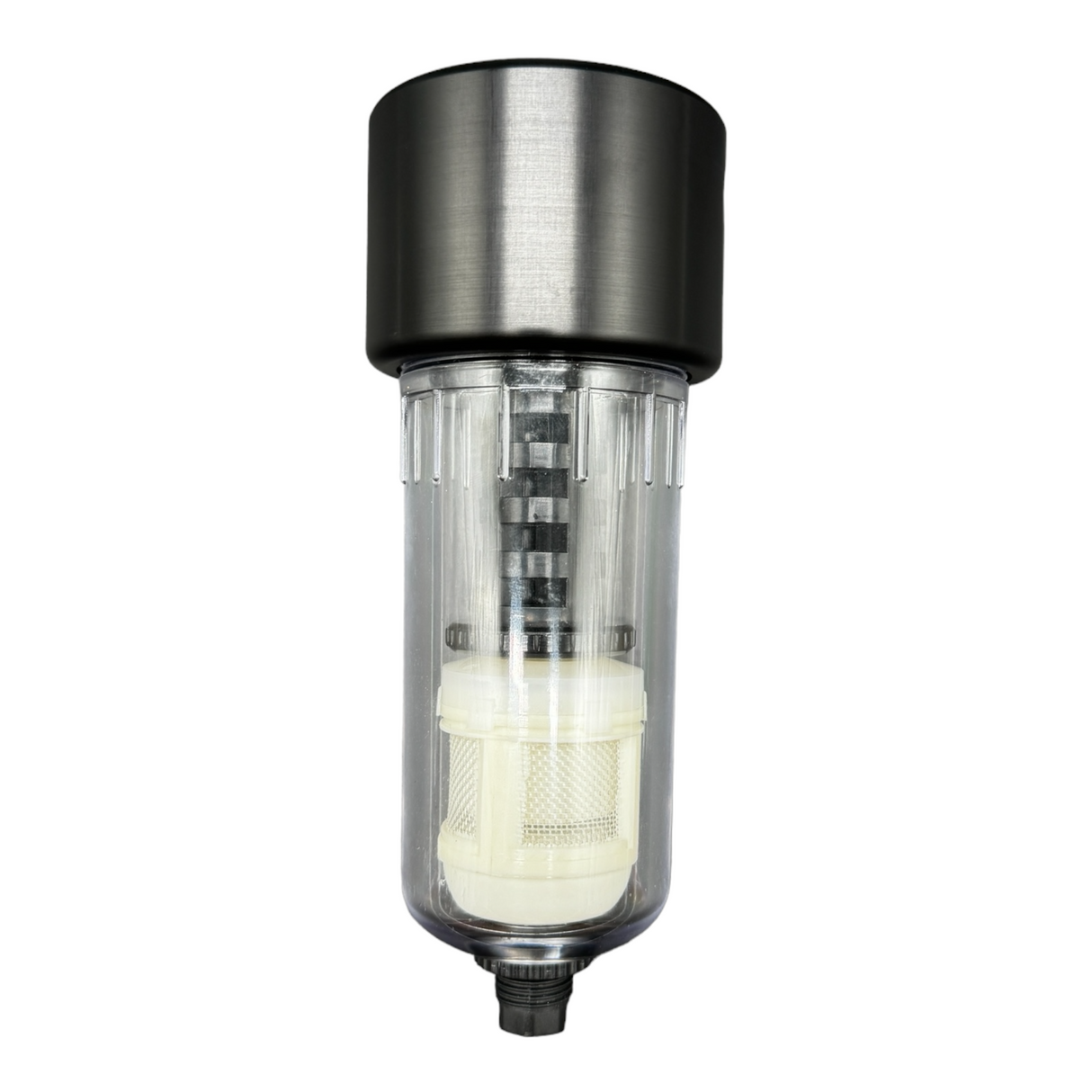

Aluminium Filter Housing - Model 360F

£111.50 GBP

£133.80 (Inc. VAT at 20%)


Inlet - Outlet Port Size:
Drain Type:
Max Temp - Max Pressure:

Aluminium Filter Housing - Model 360F - 1/4"NPT / AUTO FLOAT / 50°C - 10 bar Assembled to order – Usually ships within 3 days.

This is a Sample Product Title
Was $200.00 Now $100.00

Please contact us with any questions, we're here to help.

Filtration applications

If you can’t find what you need, please ask, we can produce filters to customers’ specifications.

Description

High Efficiency Coalescing Filters

This filter housing range is constructed of an anodised aluminium head and with a choice of either an anodised aluminium bowl or, for lower costs, a Polycarbonate bowl. Protect your equipment and sensitive instruments from water, oil, & dirt with our high efficiency instrument filters that remove these contaminates up to 99.99% efficiency at 0.01 micron.

The 360 & 370 series of coalescing filters have increased liquid holding capacity and are available with optional high volume automatic float drains (with function above 12 psi), and differential pressure indicators which are sensitive in the 2 to 16 psi differential.

 Applications:

·         Natural Gas Filtration

·         Protect Air Actuated Valves

·         Paint Spray Booths

·         Fuel Gas Filter Metering

·         Instrument Air Filter

The part number structure for the variants are as follows:

If the number does not contain an "A" after it, then it will be an aluminium head with Polycarbonate bowl. (e.g. Model 360 or 370)

Any product that contains an “A” indicates it has an aluminium head & bowl. (e.g. 360A or 375A)

Any product that contains an “I” indicates that the product has a built-in differential pressure indicator.

Any product that contains a “F” indicates that the product has an auto float drain installed. Please note that the float will function above 12 psi (1 bar).

If you need help choosing the correct variant, then please contact us and we will be happy to help.
