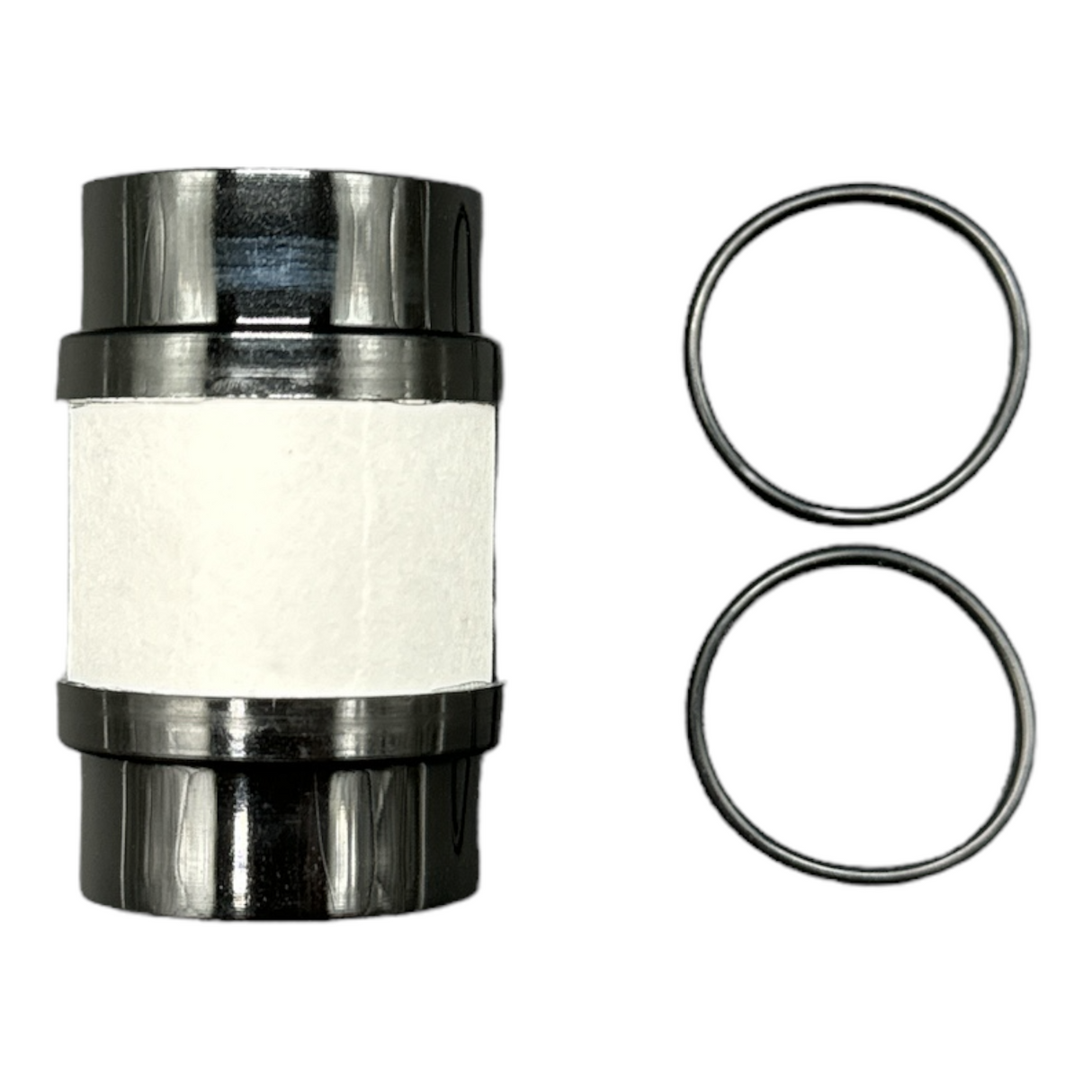

Vapour Adsoption Cartridges
£34.08 (Inc. VAT at 20%)
Vapour Adsoption Cartridges - 12-32-xx / SG-TS - Silica Gel Assembled to order – Usually ships within 3 days.
Couldn't load pickup availability
Vapour Adsoption Cartridges
Filtration applications
If you can’t find what you need, please ask, we can produce filters to customers’ specifications.
Description
Description

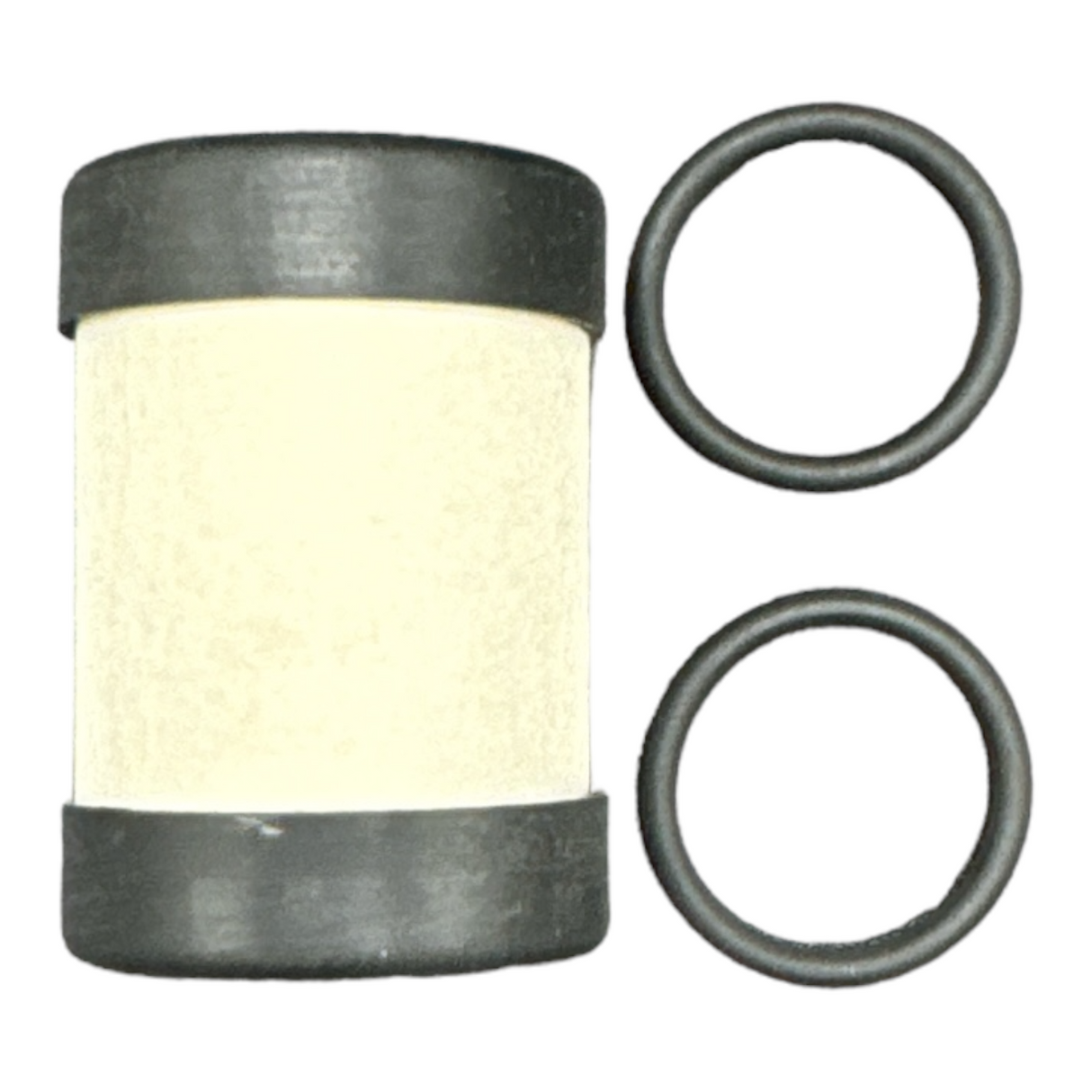

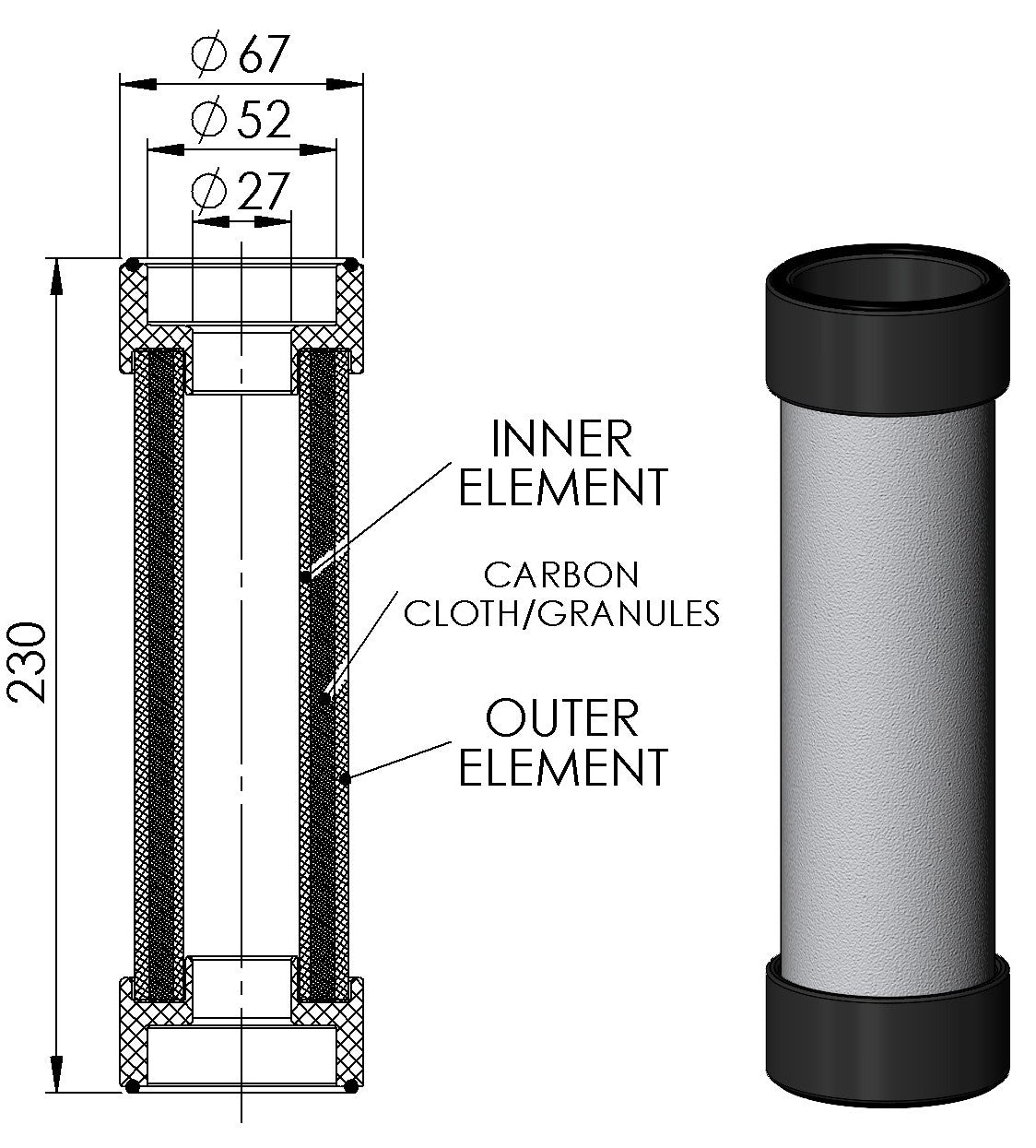

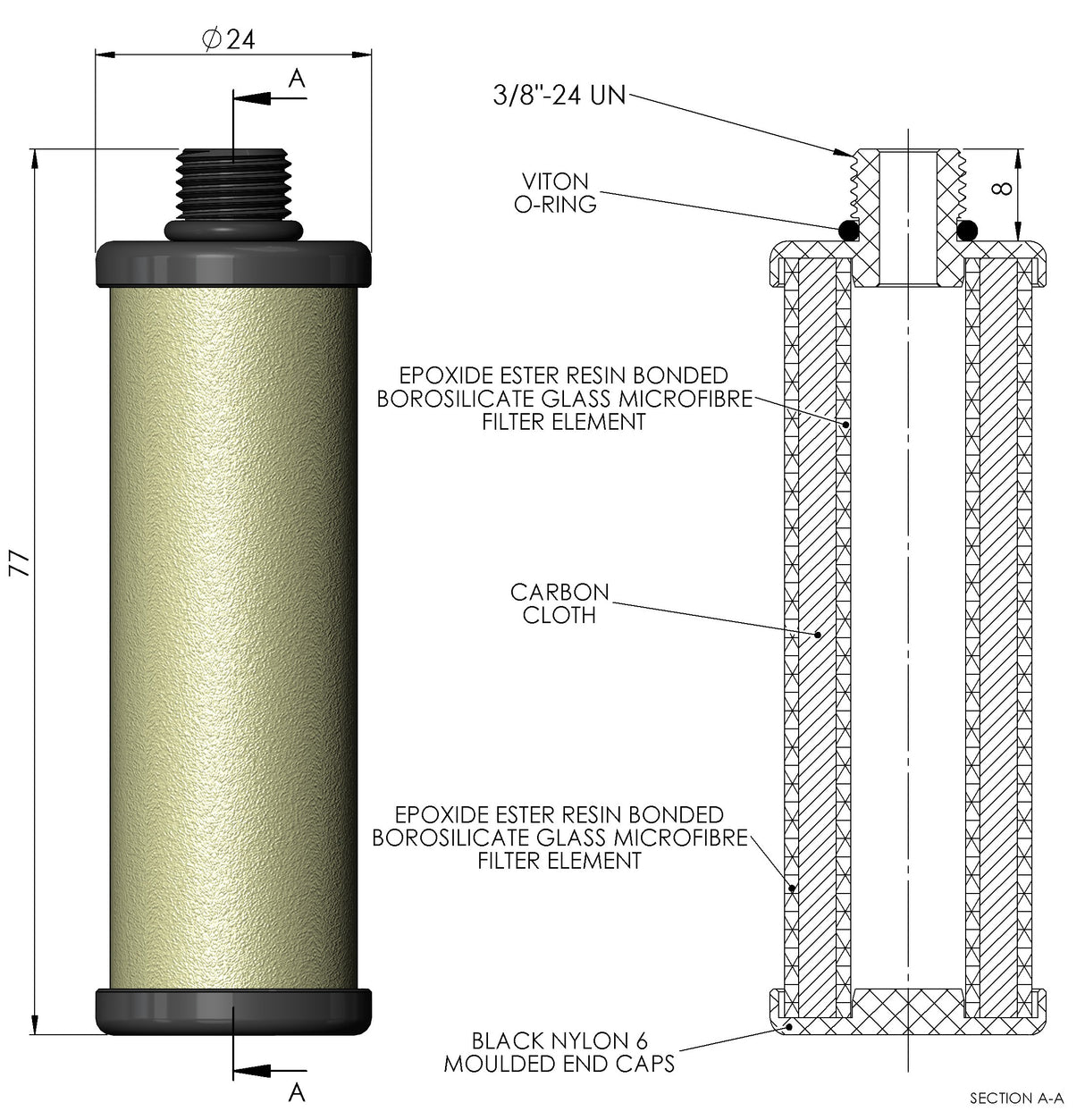

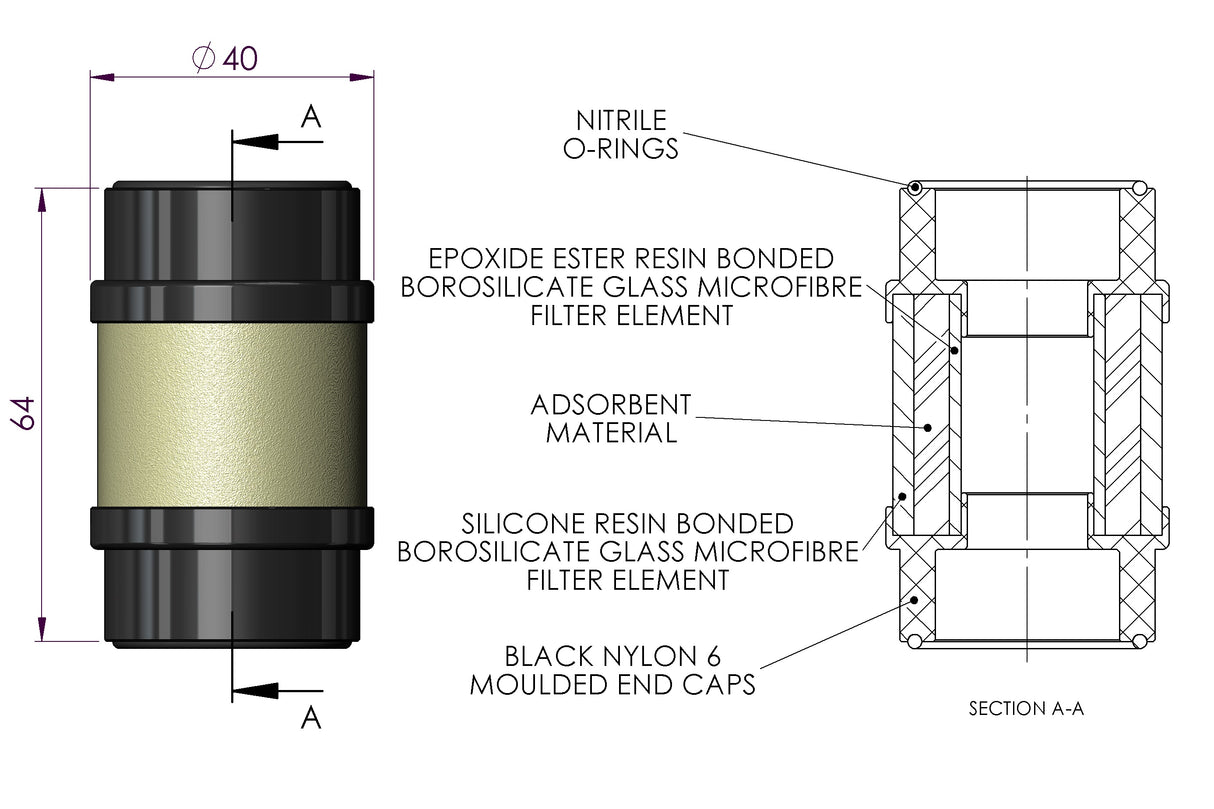

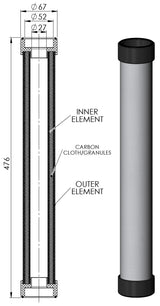

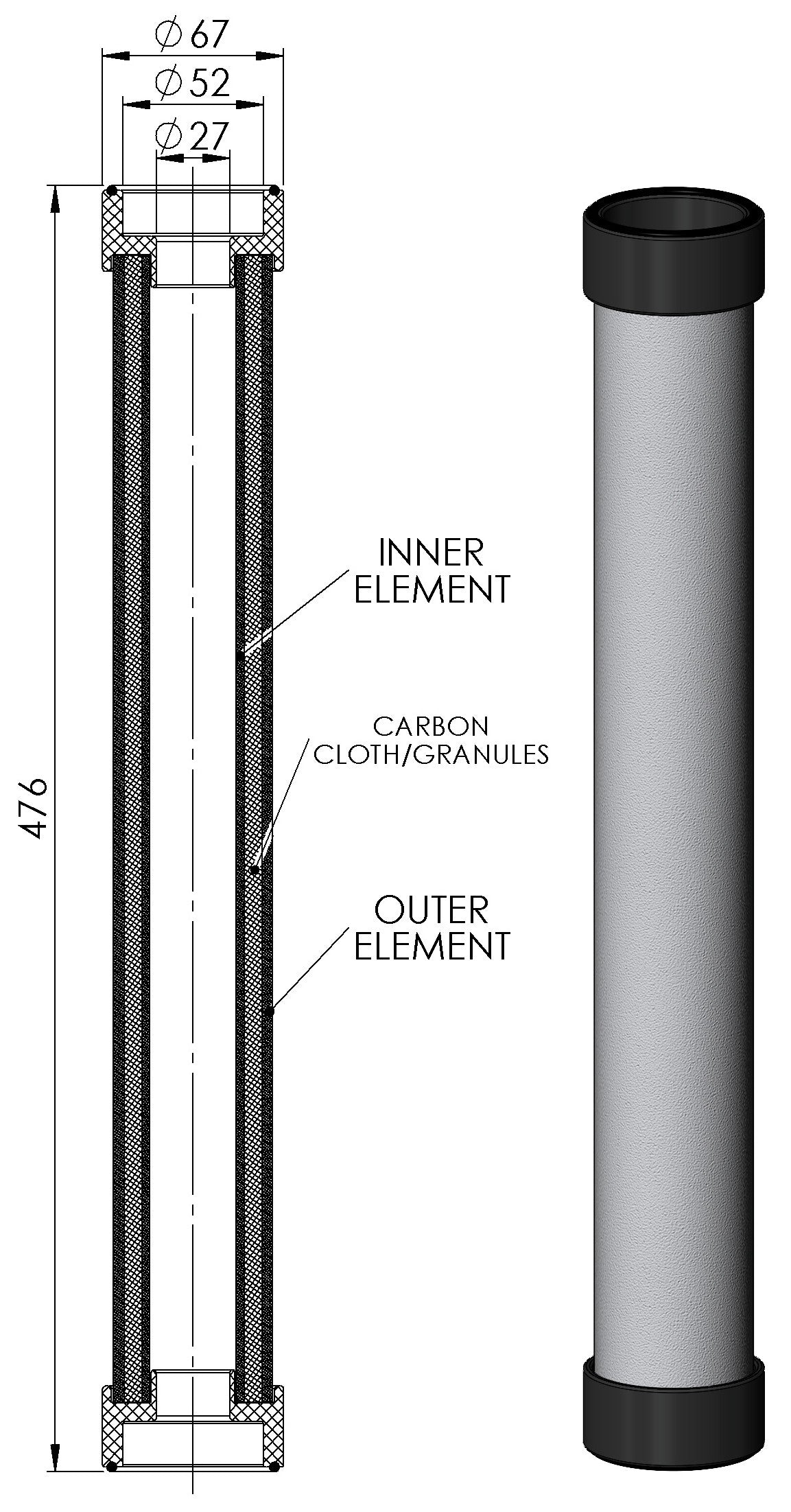

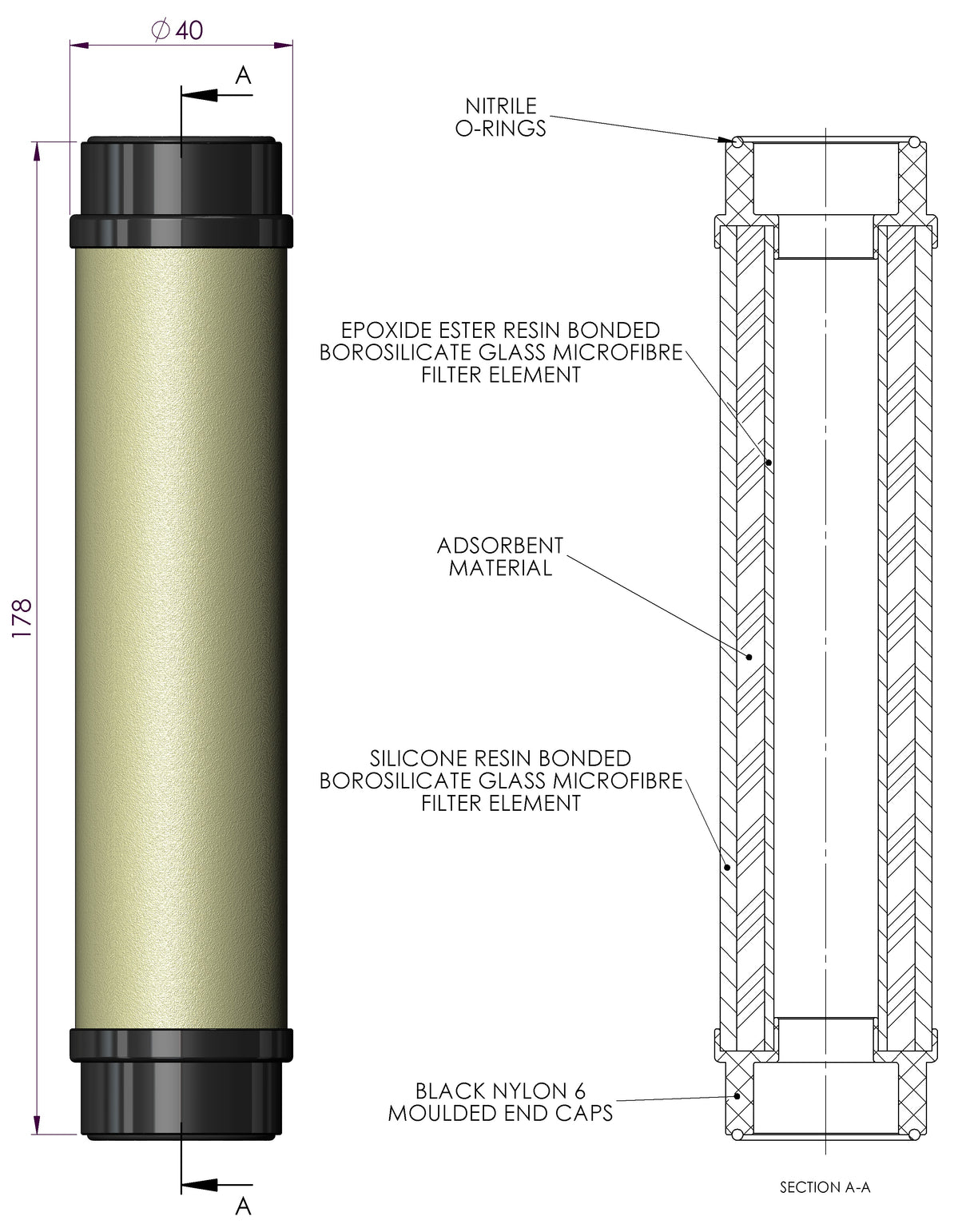

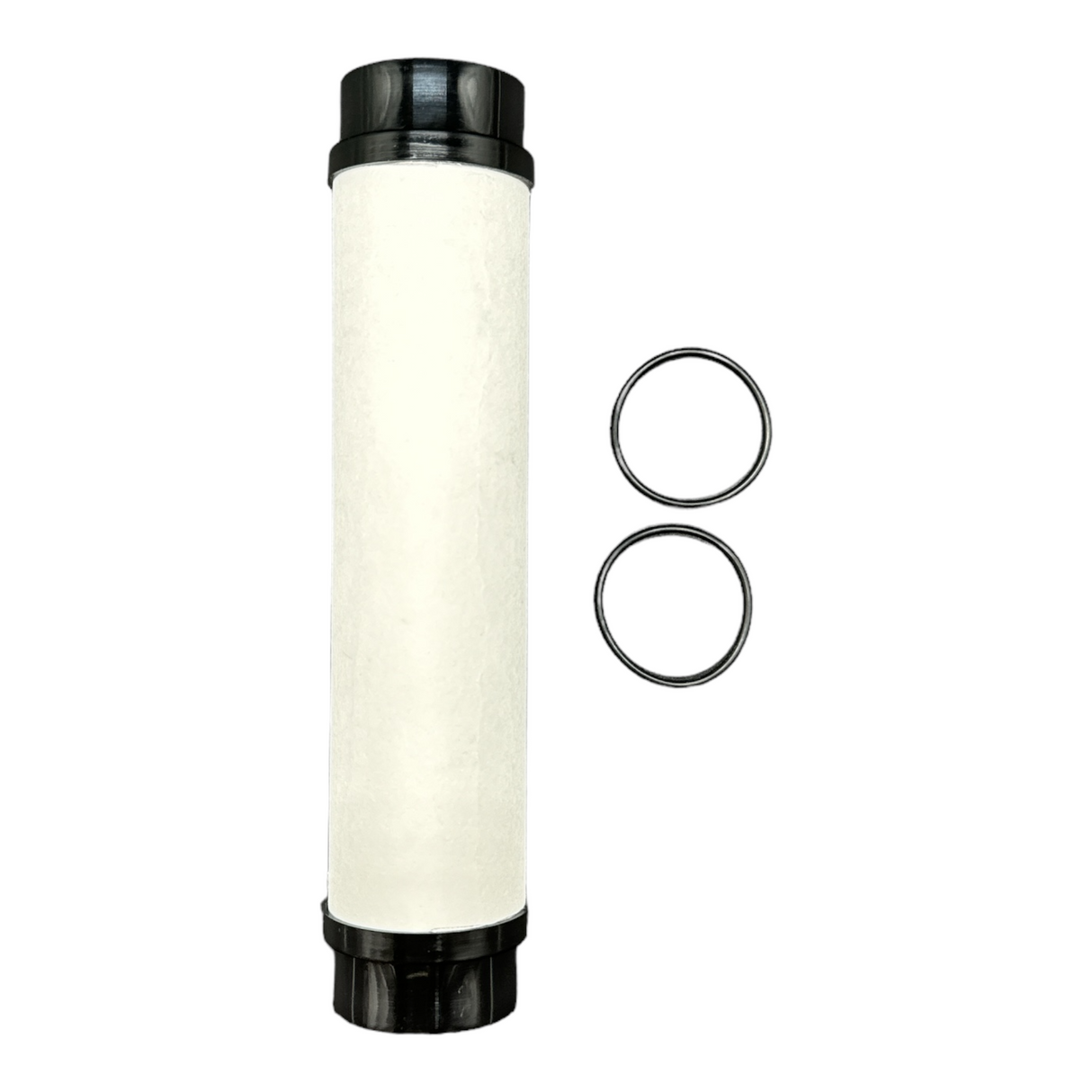

Headline vapour adsorption cartridges comprise inner and outer filter
tubes with the space between filled with adsorbent. The cartridges are
sealed with nylon end caps.
Headline vapour adsorption cartridges are designed to fit all standard
size filter housings to provide vapour adsorption over the full range of
line pressures.
Flow rates are the same as for grade 50 elements in the same size
bodies. However, with adsorption, more important considerations will
be the volume of adsorbent and the contact time.
Replace ‘xx’ with adsorbent grade required.
| Adsorbent | Code | Uses |
| Acitvated Carbon | CC | Adsorption of hydrocarbons and other organic vapours |
| Molecular Sieve 4A | 4A | Adsorption of CO2,NH3,H2S, SOx |
| Molecular Sieve 13X | 13X | Adsorption of CO2,NH3,H2S, SOx, aromatics, amines |
| Silica Gel | SG | Adsorption of water vapour |
| Mixed Bases | MB | Removal of acidic gases, CO2,SOx,NOx, HCl |
| Potassium permanganate | PP | Removal or SOx and other acidic gases |
| Hopcalite | HO | Removal of CO by catalytic oxidation to CO2 |
